Safety practices & standards

Practice the safety steps
behind the controls work.

Lock out the power. Verify the voltage. Isolate and release stored air. Check what happens when a machine stops—and what it takes to restart it. Controls Trainer gives these practices a place in actual controls lessons.

  • Control hazardous energyLevels 1, 2 & 5 · Electrical and pneumatic isolation
  • Commission the controlsLevels 3, 4, 6 & 7 · Modes, drives and restart
  • See the whole machineLevels 8–10 · Process signals, interfaces and hazards

Safety requirements in practice

See the requirement. See the lesson action.

Five cited examples show how ControlsTrainer teaches isolation, voltage verification, stored energy, circuit connections and guarding.

2 min 10 sec
Actual lesson demonstrations · Elias narration · English captionsRead transcript▶ Watch on YouTube
Go deeper into the requirementsAdditional examples: VFD residual voltage, pressure returning and protective grounding3 min 49 sec

The rule, the lesson and its application.

Follow each requirement into the actual simulator, with the citation kept on screen while the lesson action is demonstrated.

Actual lesson demonstrations · Elias narration · English captionsRead transcript▶ Watch on YouTube

Jump to a topic

Requirements shown in the videos

These are paraphrased teaching references. Follow each link for the source; NFPA 70E is identified by its 2024 edition.

Topic & citationWhat the requirement addressesHow the lesson teaches it
Electrical isolation29 CFR 1910.333(b)(2)(ii)(B), (iii)(A), (iv)(B)Disconnect the energy source; apply the required locks and tags; verify deenergization.Level 1: operate the disconnect, apply a personal lock and tag, and complete the electrical checks before wiring.
Absence of voltageNFPA 70E (2024), 120.6(7)Test at each point of work and verify the test instrument before and after.Electrical lessons: prove the simulated meter, test the required circuit points, then prove it again. The incoming line side can remain live.
Stored energy29 CFR 1910.147(d)(5)(i)–(ii), (d)(6)Control hazardous stored energy; verify isolation; continue verification where hazardous energy could return.Level 5: support the vertical axis, secure the part, isolate and release air, and check the separate downstream pressure volumes.
Circuit connections29 CFR 1910.303(b)(3)Completed wiring must be free of unintended shorts and grounds.Level 1: connect labeled terminals and check the connections against the required circuit.
Machine guarding29 CFR 1910.212(a)(1)Safeguard hazards such as nip points and rotating parts.Level 10: identify hazards and select safeguards. Level 6 adds a functional training example: guard-open response, reset, and deliberate restart.
Drive residual voltage29 CFR 1910.333(b)(2)(ii)(C)Release hazardous stored electrical energy.Level 4: distinguish supply isolation, the DC-bus discharge wait, and a simulated voltage test. Real work follows manufacturer instructions.
Protective grounding29 CFR 1910.304(g)(5)Maintain a permanent, continuous and effective grounding path.Level 1 introduces the separate roles of protective earth and the 24 V circuit return; real design, sizing and inspection remain necessary.

Training application: these examples connect specific requirements to simulator practice. Completion is not OSHA certification or proof that a person, panel or machine is code compliant. Apply plant procedures, manufacturer instructions and practical evaluation to real work.

Levels 1 & 2

A stopped motor is not an isolated circuit.

In Level 1 — Guided Motor Starter, the learner locks out the panel, verifies the circuit is deenergized, completes the control wiring and restores power to test the starter and PLC program.

Level 2 — Troubleshooting builds on that sequence: diagnose a fault using the simulated meter, isolate the panel, verify the electrical condition, repair the failed component and restore operation.

How the standards applyOSHA 1910.333 addresses electrical deenergizing, lockout/tagging and verification. NFPA 70E covers electrical safety work practices. The lesson connects those subjects to a circuit the learner can inspect and test.

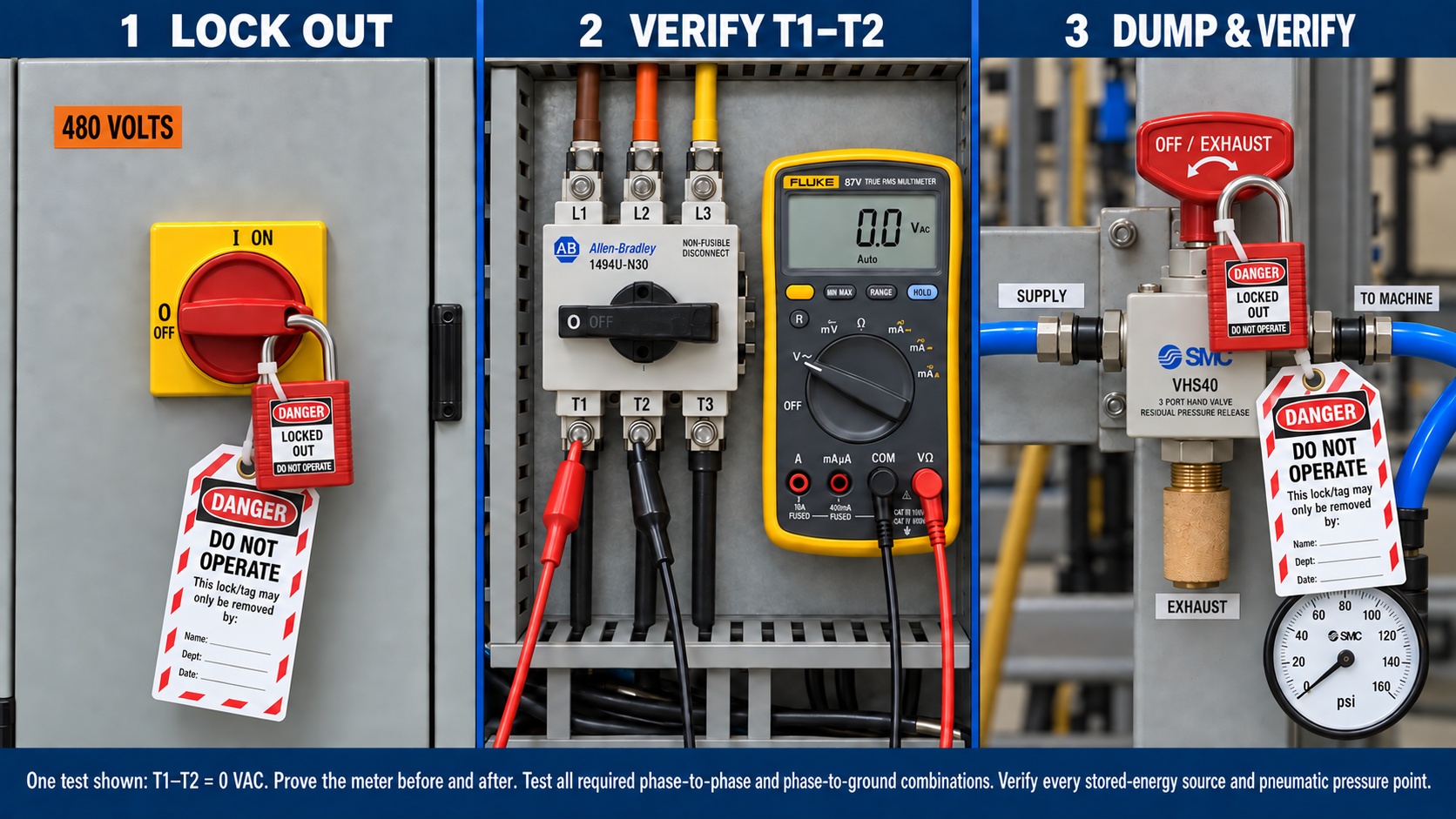

Level 1 lockout controls showing the disconnect OFF, a personal lock and tag, and completed live–dead–live meter checks.
Level 1 · Verify before working. The learner locks and tags the disconnect, checks the load-side circuit and proves the meter before and after the tests. The incoming line side remains live. View full-size screenshot (new tab)

Level 3 · Automatic Pump Control

Understand what commands the pump.

Wire the HAND/OFF/AUTO selector and low- and high-level float switches, build the control logic and test an automatic fill cycle. Compare a manual run request with a run request produced by the tank level.

How the standards applyISO 14118 provides background on preventing unexpected startup. The lesson creates a practical discussion about operating modes and automatic demands. Selecting OFF is not electrical isolation; servicing still requires the appropriate energy-control procedure.

Level 5 · Pneumatic Pick & Place Cell

Verify the voltage.
Verify the pressure. Control the load.

This lesson combines electrical controls with horizontal and vertical pneumatic motion. The learner practices electrical lockout/tagout, air isolation and pressure release before working on the cell. Switching off electrical power does not empty the cylinders.

Electrical energy

Isolate and test

Lock out the electrical disconnect and verify the lesson’s load-side AC circuit and 24 V DC control circuit with the meter.

Pneumatic energy

Dump and verify

Use the air isolation point required for the task. Dump the cell air, bleed trapped cylinder pressure and check the individual gauges for 0 PSI. Close the bleeds and check that pressure does not build back up.

Mechanical energy

Support and secure

Support the vertical axis and secure the part before releasing pressure. Gravity and the gripper or brake springs can still create force after the gauges read zero.

Two different checks: a voltage reading addresses the electrical circuit; a pressure reading addresses the measured air volume. Neither reading, by itself, proves that every source of hazardous energy is controlled. The upstream plant air supply can remain pressurized.

How the standards applyOSHA 1910.147 addresses hazardous energy during servicing, including stored energy and verification of isolation. ISO 4414 adds pneumatic-system safety context. The lesson illustrates why pneumatic isolation, trapped pressure and mechanical support belong in the same discussion. Electrical work practices are addressed separately in 1910.333.

Level 6 · Controls Engineer

Reset should prepare the machine—not start it.

Level 6 puts the learner in a controls engineer’s role. Its simulated safety relay handles the guard and E-Stop circuit separately from the PLC’s normal sequence, dropping the contactor when that safety circuit opens.

The learner tests the stopping behavior and the restart sequence. Resetting the safety circuit rearms it; restarting requires the intended Start action. The lesson also checks what happens if Start remains held through a safety stop.

How the standards applyISO 13849-1 concerns the design of safety-related parts of control systems. This lesson introduces the distinction between safety functions and ordinary PLC control; it does not establish a Performance Level or validate a real safety circuit.

Level 7 · Technician Challenge

Connect the guard to the motion sequence.

Build and test the turret sequence using part detection, position signals and the guard condition. The simulated safety relay interrupts the contactor circuit separately from the ordinary PLC sequence.

Compare opening the guard with pressing Stop. With the required program in place, check the safety-stop recovery and the need for a fresh Cycle Start action, including a held Start command.

How the standards applyISO 14119 addresses guard interlock design and selection; ISO 13849-1 addresses safety-related control design. These are reference subjects, not a claim that the lesson validates a real machine’s safety performance.

Level 8 · Analog Process Control

A control decision depends on a trustworthy signal.

Select the instruments and I/O, wire the 4–20 mA loops, scale the measurement, configure control and alarms, then test the setpoint response and diagnose a transmitter fault.

How the guidance appliesISA-18.2 is relevant background for process alarm management. This lesson practices selected signal and alarm tasks; it does not cover the complete alarm-management lifecycle or design a safety instrumented system.

Levels 4, 9 & 10

Carry the practices into commissioning and operation.

Other levels address different decisions: setting up a drive from its motor data, making an operator interface understandable and reviewing the hazards of a complete production cell.

Level 4 · VFD Conveyor Commissioning

Configure the drive for the job

Read the motor nameplate, enter the drive parameters, choose the command and speed sources, and test the conveyor at different speeds. The exercise also tests each Safe Torque Off channel and fault recovery.

The connection: commissioning follows the equipment’s instructions. Removing motor torque does not electrically isolate the drive.

About Level 4 · PowerFlex manual

Level 9 · HMI Machine Interface

Make status and commands clear

Build the operator screens, distinguish read-only machine status from command requests, and configure fault descriptions, alarm acknowledgement and history.

The connection: ISA-101 addresses HMI design. The lesson gives the learner a practical interface to build and test. Acknowledging an alarm records that it was seen; it does not repair the fault or restart the machine.

About Level 9 · ISA-101 guidance

Level 10 · Integrated Production Cell

Review hazards across the cell

Start with the machine hazard review: conveyor nip points, the rotating cap turret, pneumatic motion, the vertical load, compressed air, incoming power and residual drive energy.

The connection: OSHA 1910.212 addresses machine guarding. ISO 12100 provides broader risk-assessment context. This exercise asks the learner to connect hazards to safeguards across one machine, alongside the energy-control topics in the earlier lessons.

About Level 10 · Machine guarding

Level 10 hazard review listing conveyor nip points, rotating machinery, gravity, crushing, compressed air, electrical energy and point-of-operation access.
Level 10 · Match each hazard to a safeguard. The learner reviews eight hazards across the cell and selects a primary safeguard for each. Shown before the answers are selected. View full-size screenshot (new tab)

Beyond the lesson checks

Are these all the applicable standards? No.

Requirements depend on the machine, its hazards, location and the editions adopted for the installation. Machine-specific standards and manufacturer instructions can add requirements. The references below broaden the discussion; listing one does not mean the course teaches or assesses every requirement in it.

OSHA entries are regulations. NFPA, ISO and UL publications address different design, installation or work-practice subjects. ISA references here concern operator interfaces and alarm management; they do not make an ordinary PLC or HMI a safety system.

  • NFPA 79Electrical equipment of industrial machinery; background for the power and control circuits depicted across the lessons.
  • NFPA 70 — National Electrical CodeElectrical installation requirements; relevant to real installations beyond the simulated panel.
  • UL 508AIndustrial control panels; a lesson completion is not a UL panel certification.
  • ISO 4414Pneumatic system safety; useful background for Levels 5 and 10 and their stored-air hazards.
  • ISO 14118Prevention of unexpected startup; context for operating modes, recovery and energy control.
  • ISO 14119Guard interlock design and selection; background for guarded motion in Levels 6, 7 and 10.
  • ISO 13850Emergency-stop functions; background for distinguishing an E-Stop from isolation and normal stopping.
  • ISO 12100Machinery risk assessment and risk reduction; background for the Level 10 hazard review.
  • ISA-18.2Process alarm management; related engineering guidance for the alarm discussions in Levels 8 and 9.

Scope matters: use the lesson breakdown to see what is practiced. Use the applicable publications, a machine-specific risk assessment and qualified review to determine what a real installation requires.

From the lesson to the workplace

Use the exercise to start a specific conversation.

Have the learner explain which energy sources are present, where isolation occurs, what each measurement proves and what must happen before restart. Review the sequence and the reasoning, not just whether the simulated machine runs.

For a training record, note the level, the task practiced, any missed steps and the follow-up needed. Then connect that discussion to the actual equipment and your organization’s approved procedures.

Official references

Sources behind the practices

These references explain the subjects connected to the lessons. They are not a claim that the simulator or every depicted component arrangement meets all requirements of a standard.

Your next challenge · free to start

Put your skills to work.

Wire a motor starter in Level 1 or troubleshoot a stopped conveyor in Level 2. No account needed to start.

30-day giveaway: Pass both levels on your account to earn all 10 levels free for 30 days. Once per person.

Try Level 1 free →Try Level 2 free →
